Product Introduction

Description

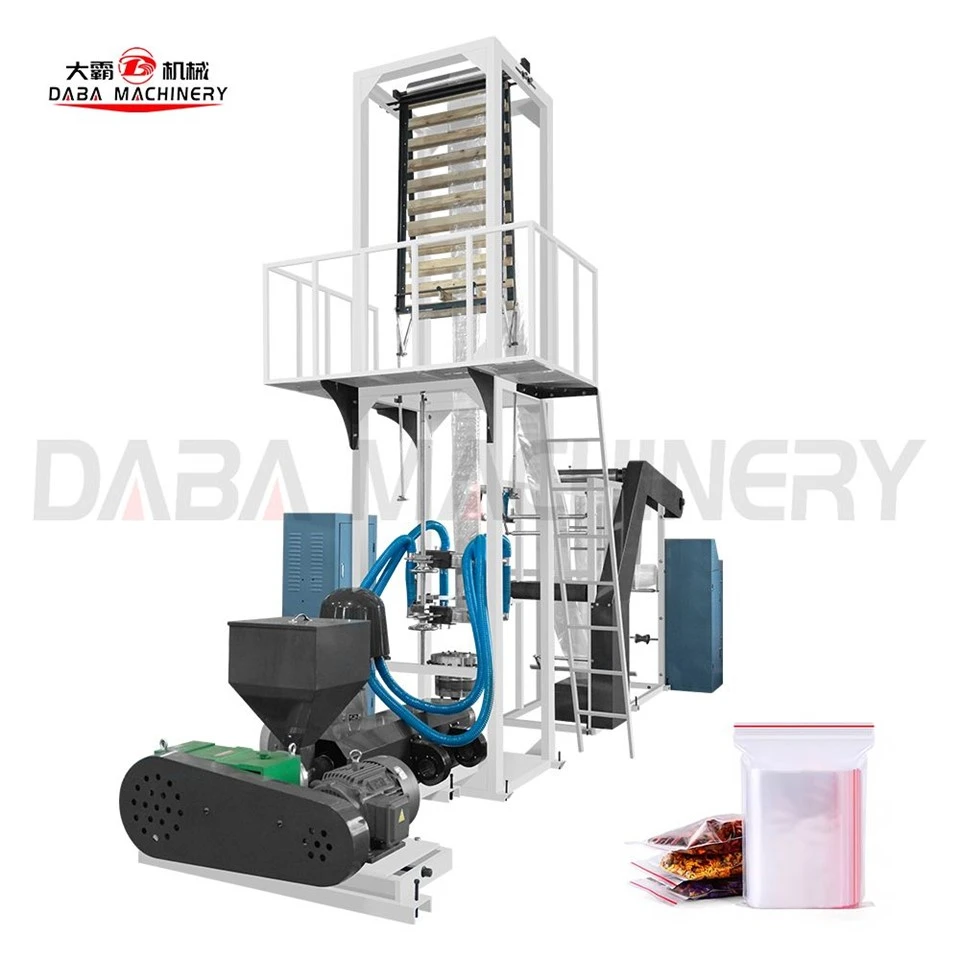

The DBZD-CM600 film blowing machine is designed for stable and efficient production of high-quality polyethylene film, featuring a servo-assisted feeding system to ensure smooth material handling and consistent film thickness. It adopts a PLC touch-screen control interface for easy operation, precise parameter adjustment, and real-time monitoring. Equipped with frequency-conversion control for the main motor and auxiliary drives, the machine operates with stable speed regulation and reduced energy consumption. Its high-precision temperature control ensures uniform heating of the extrusion section, resulting in strong film transparency and excellent mechanical properties. The reinforced steel frame structure minimizes vibration during high-speed operation, while the optimized cooling and air-ring design enhances film stability and uniformity. Overall, the DBZD-CM600 offers reliable performance, consistent film quality, and durable operation for standard film-blowing applications.

Parameters

Model	DBZD-ZF600	DBZD-ZF600h
Material	LDPE
Output	60-180 pcs/min	60-240 pcs/min
Bag making width	40-350mm
Bag making length	40-550mm
Servo motor		2kw /Delta
Main motor	*1.5kw1set conversion control**	*1.5kw1set conversion control**
Echarging motor	150w	370w conversion control(Delta)
Feeding motor	300w	370w conversion control(Delta)
Computer	1set	Delta
Heater	2kw
Cooling	0.37kw
Power	7kw
Dimension(L×W×H)	3800×1400×1500mm

Feature

Machine Features

• Dual Model Options (Standard & High-Speed)
DBZD-CM600 (Standard) and DBZD-CM600H (High-Speed) meet different capacity needs, ranging from 60–240 pcs/min.

• Stable & Accurate Servo Feeding
Equipped with Delta 2kW servo motor (high-speed model) and AC feeding system to ensure smooth film pulling and precise bag length control.

• Touch Screen Operation
Uses Delta/industrial touch screen computer with PLC control, allowing easy parameter setting, monitoring, and troubleshooting.

• Frequency Conversion Control System
Multiple Delta/Kowo inverters control feeding, discharging, and main motor speed for stable and energy-efficient production.

• High-Accuracy Photoelectric Tracking
TEES/ordinary photoelectric sensor ensures precise tracking, with automatic stop on mark loss for consistent bag quality.

• Strong & Reliable Sealing Performance
2kW heating power provides firm, flat, and reliable sealing for LDPE zipper bags.

• Efficient Cooling System
0.37kW cooling motor keeps sealing areas at low temperature, improving sealing appearance and consistency.

• Anti-Static Treatment System
Equipped with dual 15–16kV static eliminators to prevent material sticking and improve film feeding stability.

• Reinforced Steel Plate Frame
Heavy-duty steel frame ensures stable running, reduced vibration, and long machine life.

• Upgraded Performance for High-Speed Model
High-speed version equipped with stronger servo motor, upgraded discharging motor (370W), dual 0.4kW inverters, and enhanced PLC/photoelectric system, ensuring up to 240 pcs/min with high stability.
