Double-Lane Hot-Cutting Vest Bag Making Machine with Bundling Machine
Description
The DBZD-500X2TSHB Hot-Cutting and Bundling Machine is a high-efficiency dual-section system designed for precision bag making and automated bundling. The hot-cutting unit adopts dual INVT servo drives, magnetic powder tension control, and Panasonic photoelectric tracking to ensure stable feeding, accurate eye-mark positioning, and consistent cutting quality at speeds up to 300 pcs/min. Its robust 12mm steel frame and nitrile rubber traction rollers provide long-term reliability and smooth material handling.
The fully automatic bundling section features powerful 5T Taiwan Xunjie cylinders, eight Yuchen robotic cylinders, and a Zefutech servo-driven transmission for fast, synchronized bundling operations. With adjustable folding formats, a 360° rotating punching plate, and dual vibration bowls for automatic rubber band feeding, the machine delivers neat, uniform bundles at up to 7 cycles/min. An integrated Zefutech touch-screen control system and PLC automation support precise parameter settings, centralized monitoring, and efficient workflow management.
Parameters
| Passionate part | |
| Feeding method | Photoelectric induction feeding |
| main motor |
1.5KW |
| Bag-making width |
220-400mm |
| Bag length |
320-680mm |
| machine speed |
130-300pic/min |
| Body structure |
12Mm A set of steel plates |
| Automatic bundling part | |
| power supply voltage |
220V 50HZ |
| Total power |
6KW |
| Body structure |
A set of steel plates 12mm |
| Material feeding motor |
120W Adjustable Speed |
| Chong Pan |
360° Rotating belt side shift |
| Folding range | 30% off/40% off |
| Pressure range | 0.4-0.6 air pressure |
| Folding length range |
300-650mm |
| Folding width range |
200-400mm |
| Folding speed | 7 times/minute |
| Overall dimensions |
3300X1880X1800 |
| weight |
1200kg |
| price including tax |
188 000 |
Feature
1. Hot Cutting Section

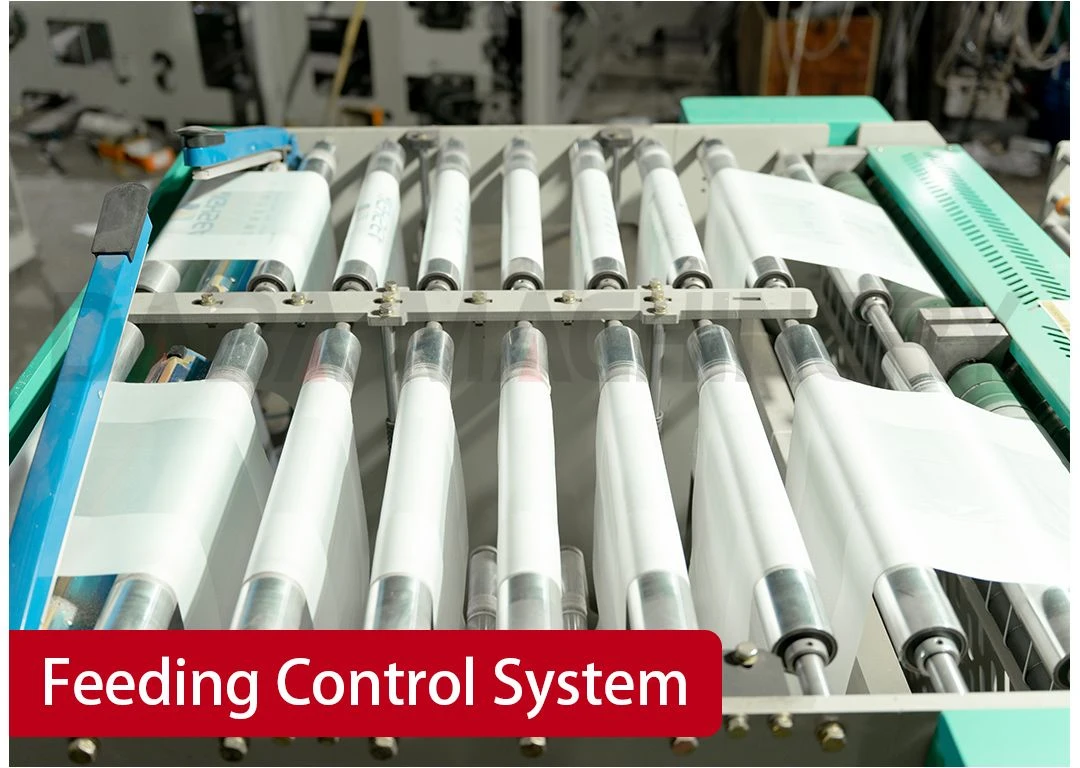

• Cylinder-powered feeding system (Yuchen brand) ensures smooth material loading.
• Magnetic powder brake control provides stable unwinding tension during high-speed operation.
• Photoelectric no-material detection enables automatic machine stop for safety and material saving.
• Dual 0.55kW unwinding motors with inverters provide stable and efficient feeding.
• Dual 3kW INVT servo motors deliver precise, high-speed film feeding and cutting accuracy.
• Panasonic photoelectric tracking ensures accurate bag length and printing eye mark positioning.
• Touch-screen control system (Zefutech) and PLC for easy parameter setting and real-time monitoring.
• High-precision bag forming capability with width 220–400mm and length 320–680mm.
• Production speed up to 130–300 pcs/min with stable cutting performance.
• Nitrile rubber roller ensures strong friction and long service life.
• 12mm thick steel frame provides high stability and long-term durability.
2. Automatic Bundling Section
• 5T Taiwan Xunjie booster cylinders deliver strong and stable bundling pressure.
• Eight sets of Yuchen robotic cylinders ensure fast, smooth, and precise mechanical movements.
• Zefutech servo-driven transmission offers accurate synchronization and consistent bundling performance.
• Equipped with dual brush smoothing units to ensure neat bundle appearance.
• Independent punching time adjustment allows fine-tuning for different materials.
• 360° rotating punching plate with lateral shifting function for flexible bundling formats.
• Folding capability supports boh 3-fold and 4-fold operations, adaptable to multiple bag sizes.
• Adjustable folding length (300–650mm) and width (200–400mm) for various bundle specifications.
• Operating speed of up to 7 cycles per minute.
• Dual vibration bowls for automatic rubber band feeding and positioning.
• 12mm thick steel frame ensures machine rigidity and stable long-term operation.
• Integrated Zefutech 2016 touch-screen controller for centralized control and easy operation.
